Hansgrohe shower channels

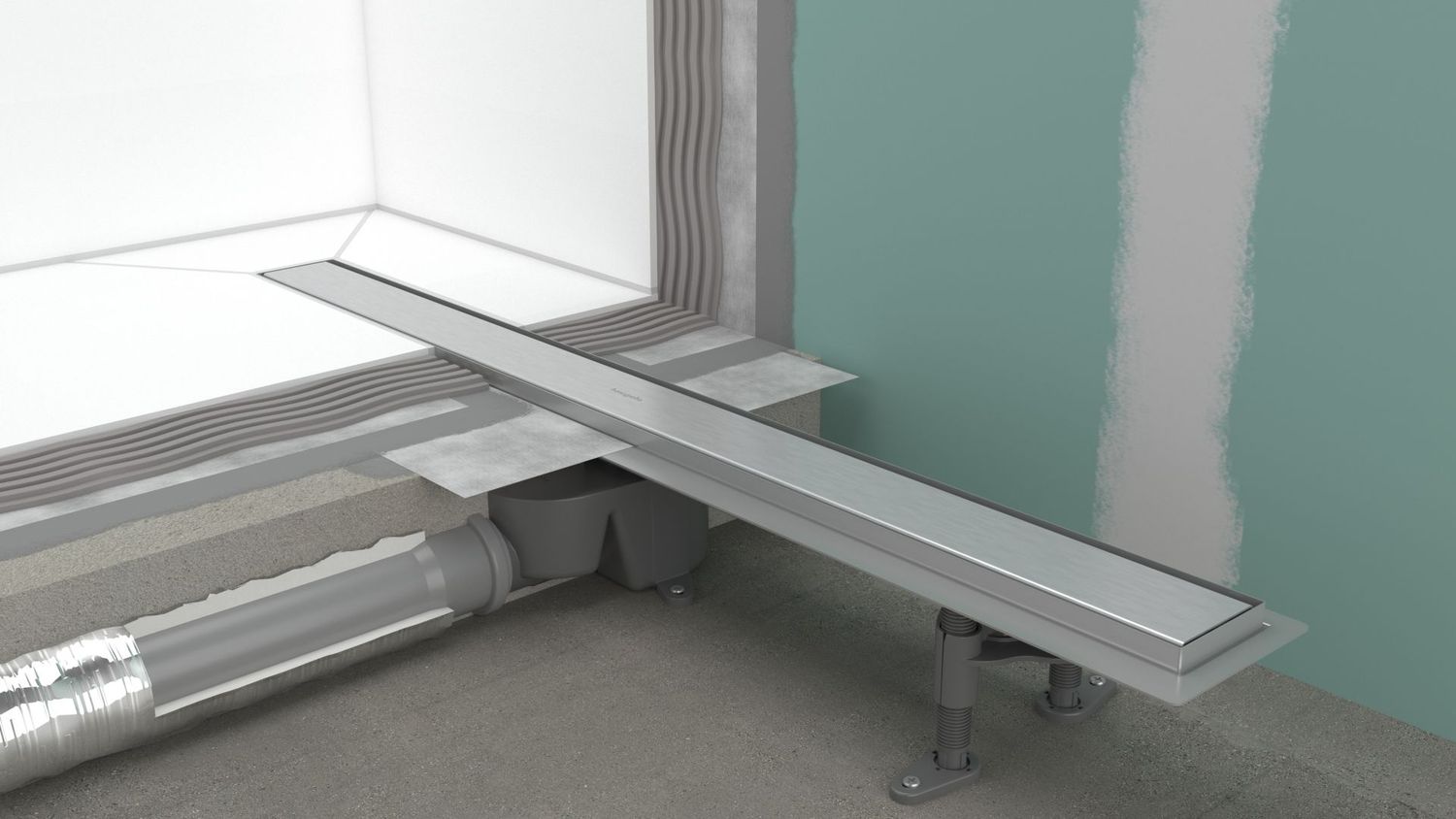

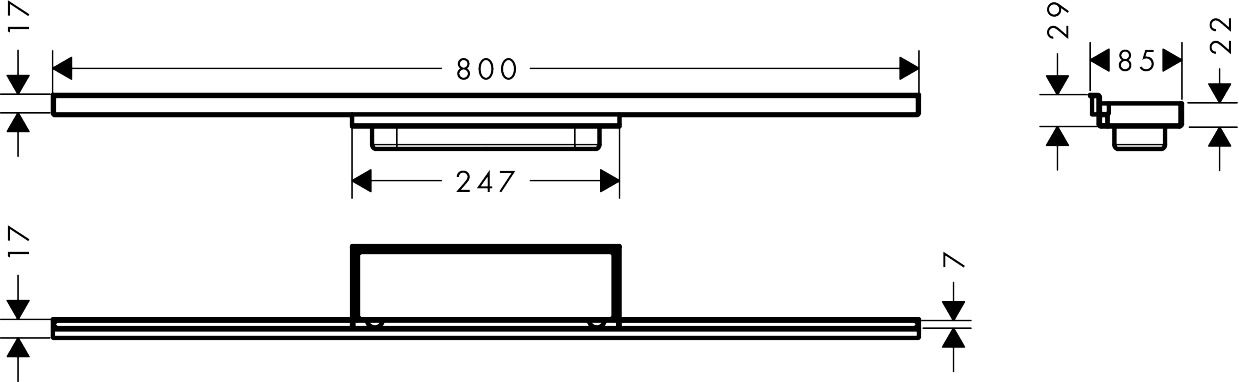

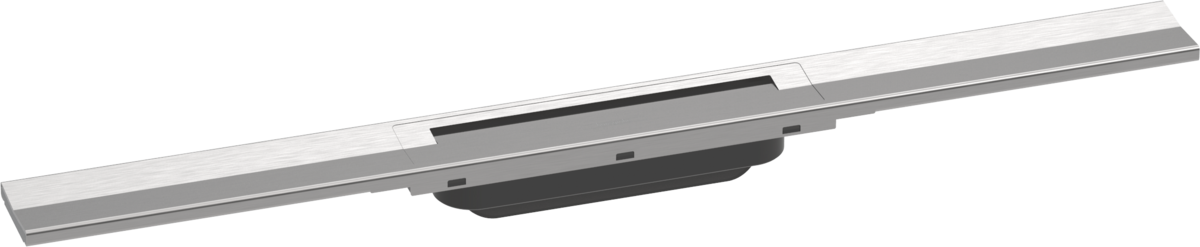

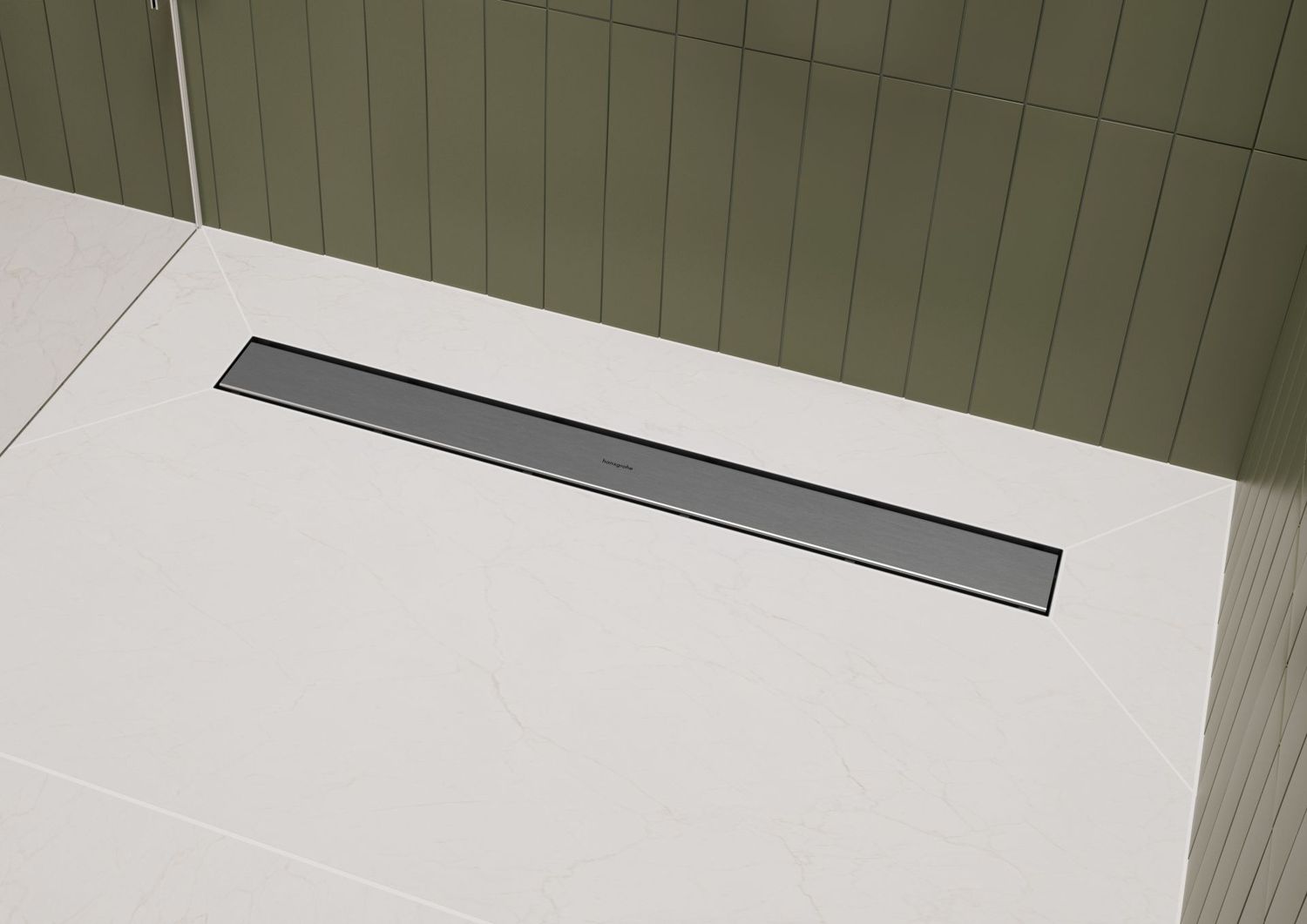

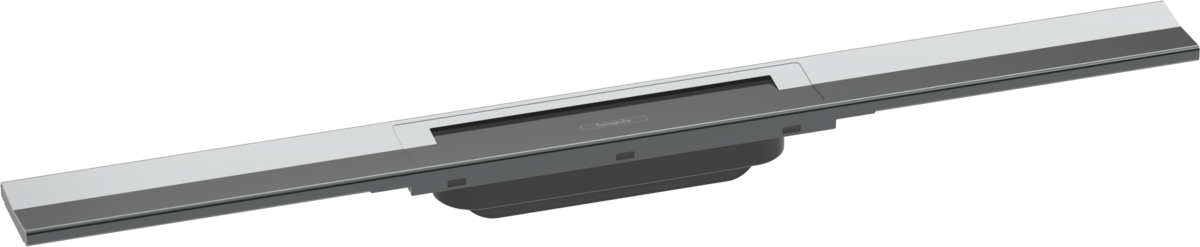

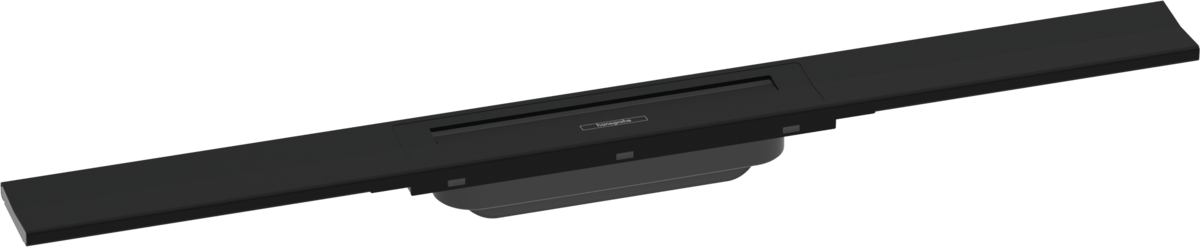

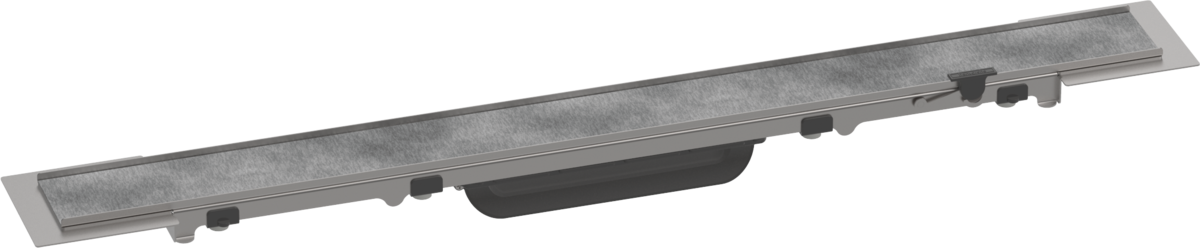

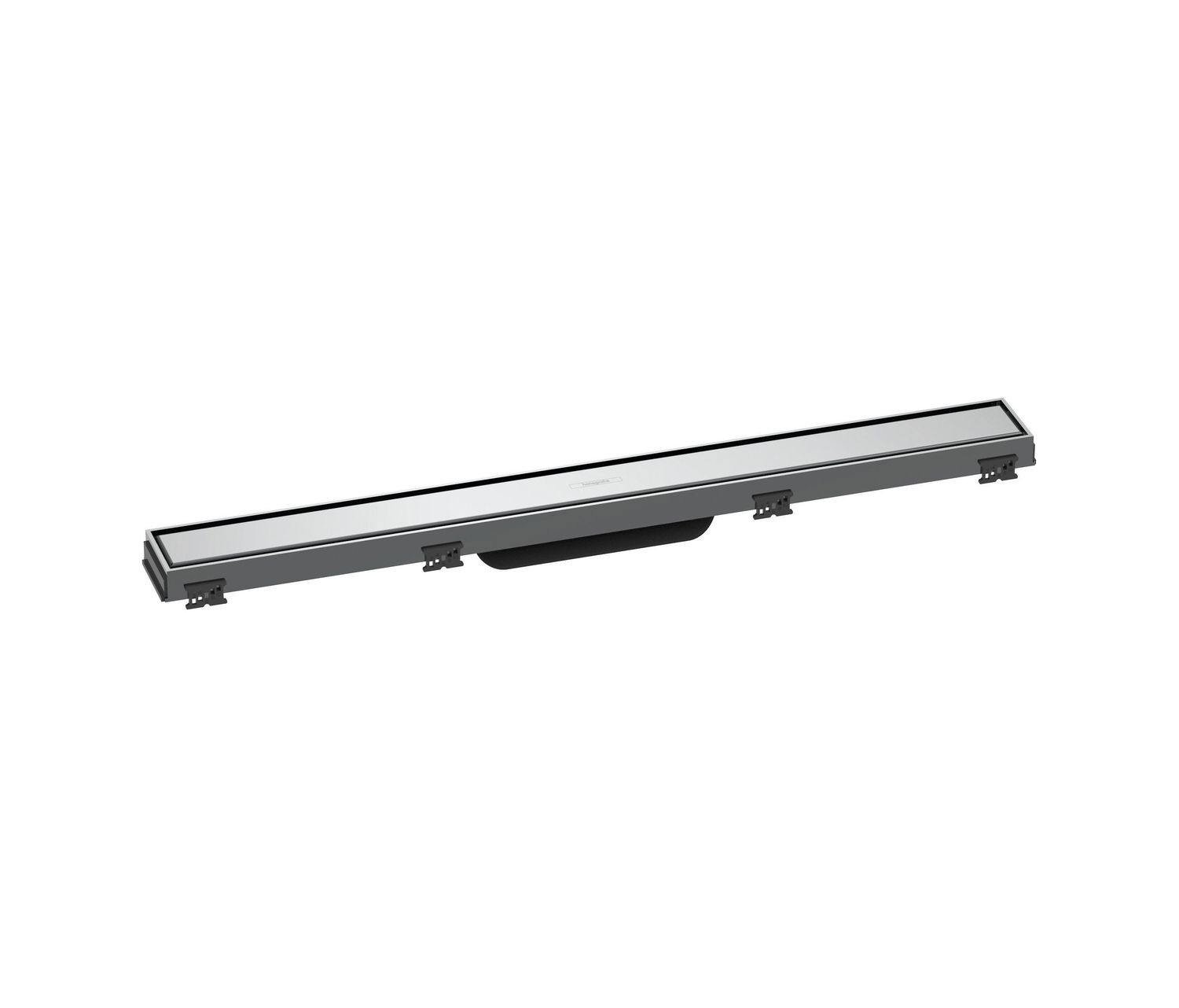

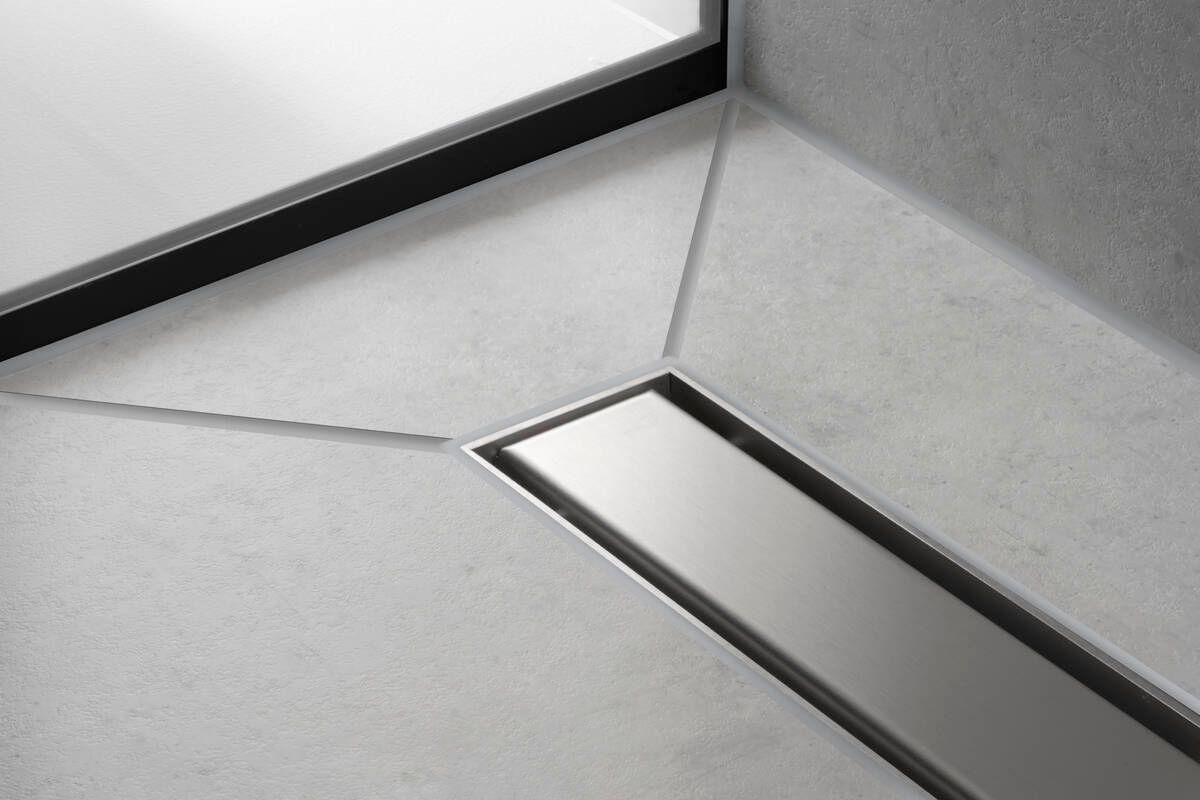

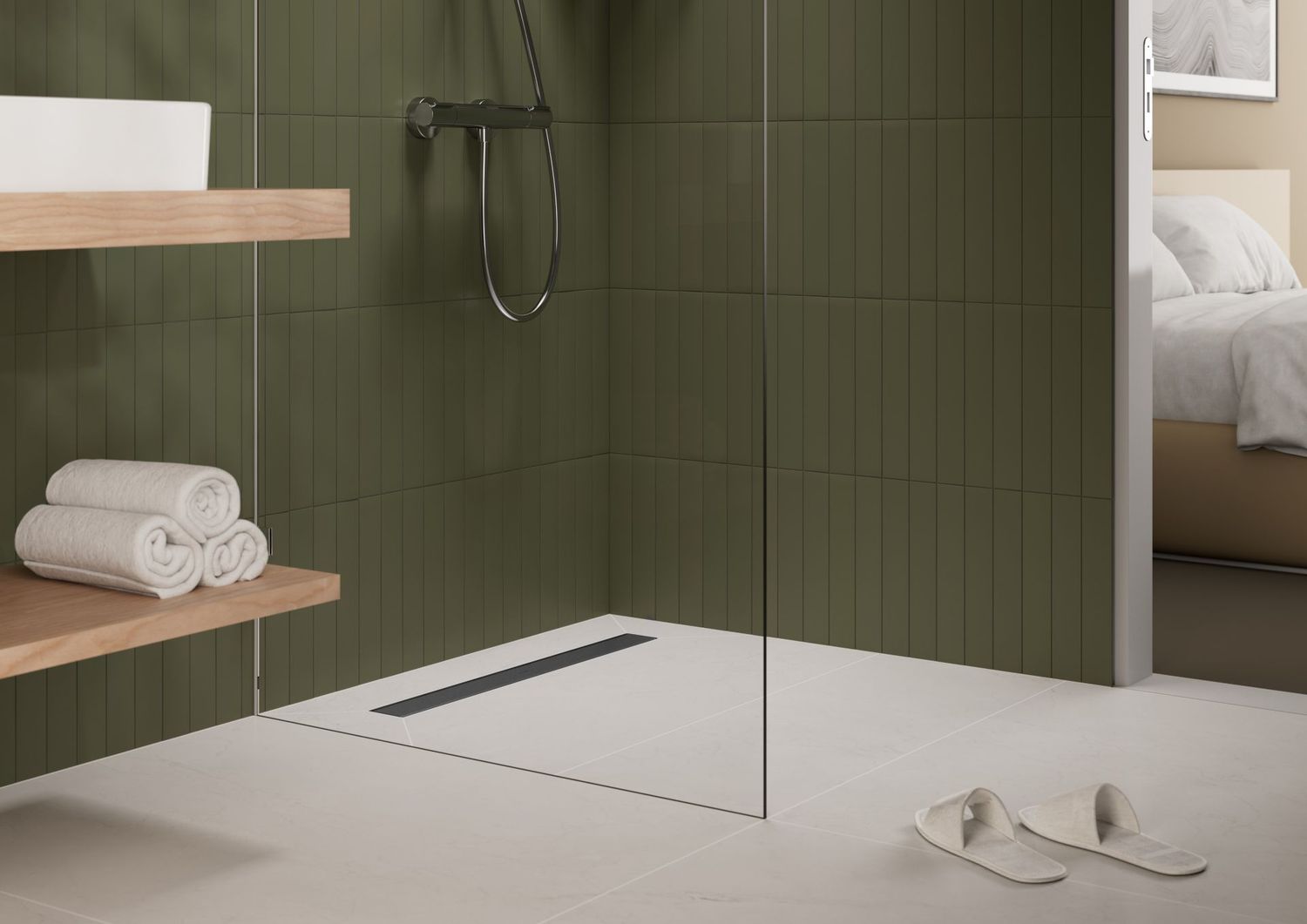

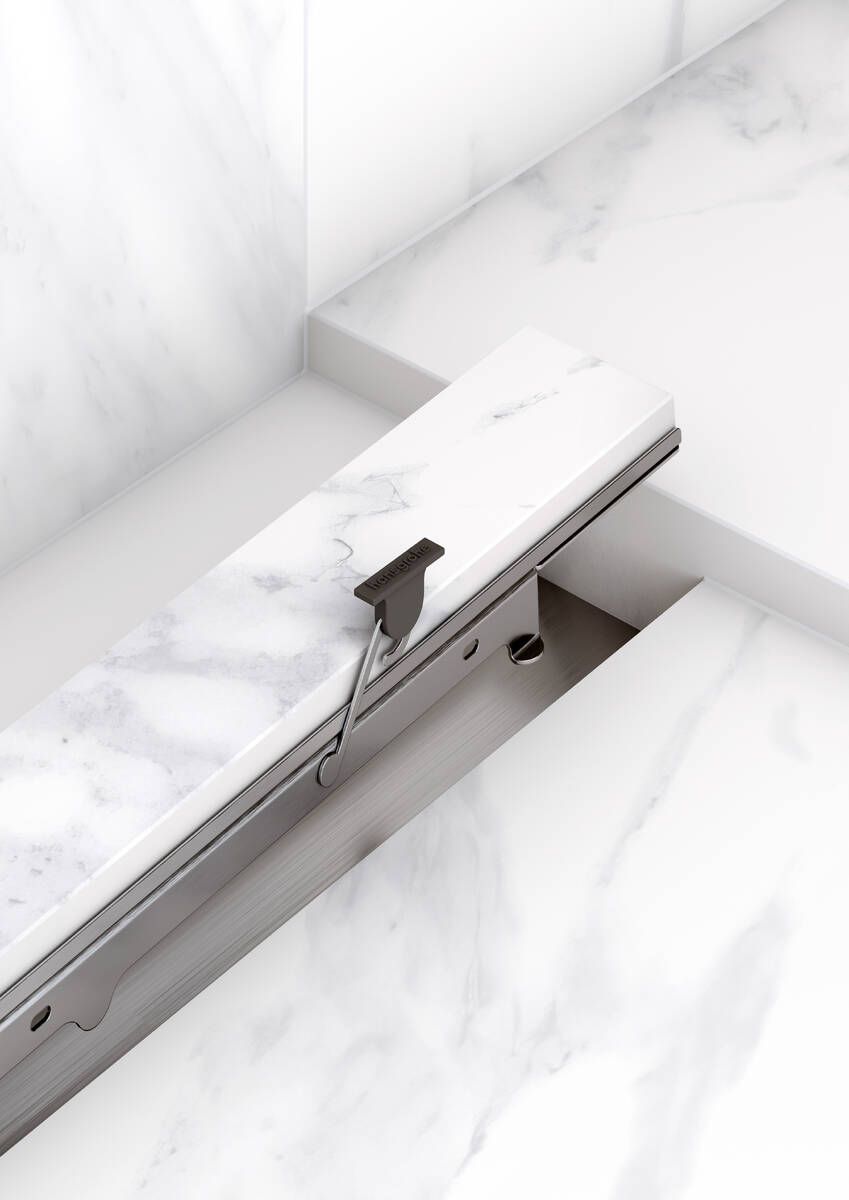

The three Hansgrohe RainDrain channels are available in six lengths, from 700 to 1200 mm. They feature a height-adjustable stainless steel frame and offer drainage rates of up to 42 liters/min when equipped with a 50 mm water seal trap and 60 liters/min with the Dryphon membrane trap.

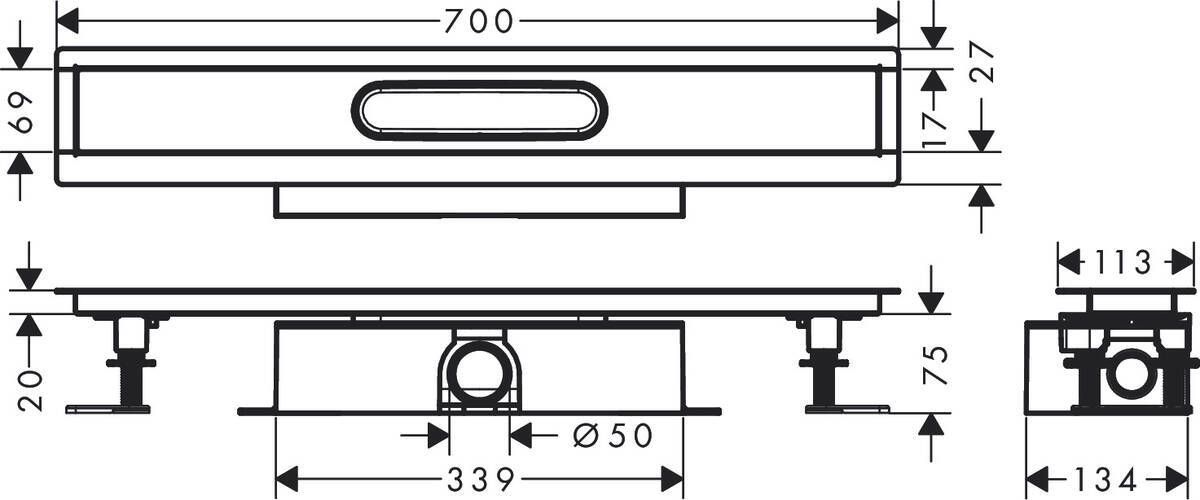

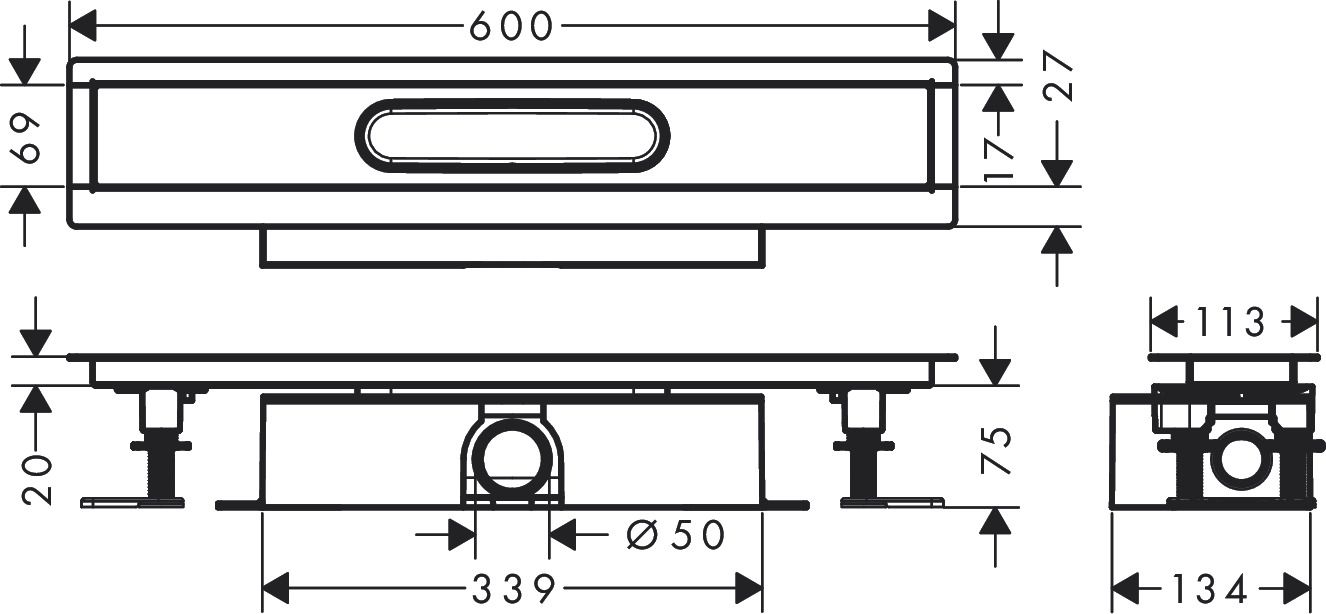

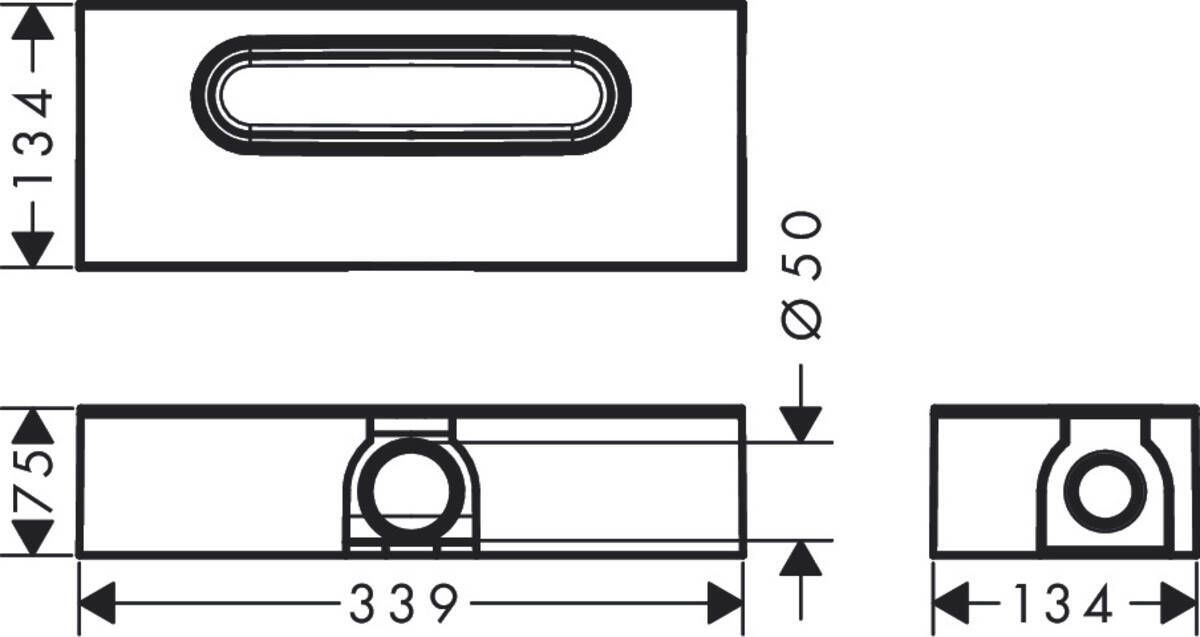

The uBox concealed body: the Hansgrohe touch

The familiar iBox wall-mounted unit has its floor-mounted counterpart: the uBox. This concealed housing is available in two minimum installation depths – 57 mm or 75 mm. These units feature three outlets for easy connection regardless of the drain's position, and a siphon with a 50 mm water seal, compliant with EN NF 1253-1 (the interchangeable Dryphon dry siphon is included with the channel finishing kit). The waterproofing membrane is pre-installed at the factory. Three cuttable plates, two 20 mm thick and one 10 mm thick, allow for height and level adjustment of the uBox, while also facilitating its floor mounting.
